[Specifications]
LED Type | SMD 3528 | Waterproof | IP20, IP65, and IP68 |
LED Quantity | 60 pieces/m | PCB Color | white, yellow, and black |
Wattage | 4.8W/m | Lifespan | >50,000 hours |
Input Voltage | 12V DC | Length | 5m/roll |
Light Colors: pure white, warm white, cool white, red, yellow, blue, green, pink,purple, and more PCB color |

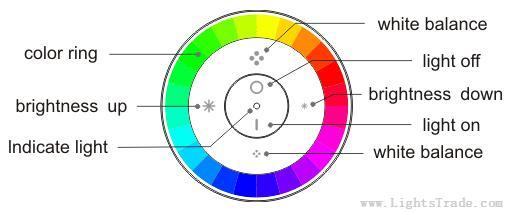

[Operating instructions]
1) Gradual change model: Touch on button again under monochrome mode condition, RGB
strip will be changed into gradual change mode .increasing color button will speed up
the color change, decreasing color button will slowdown
2) Hopping mode: Under gradual change mode condition. Touch on button .the RGB strip
will be changed into hopping mode. Increasing color button will speed up the hopping,
decreasing color button will slowdown. Under gradual change or hopping mode, touching
on switch will change one to the other. Close the RGB strip and restart It if you want
to enter monochrome mode.

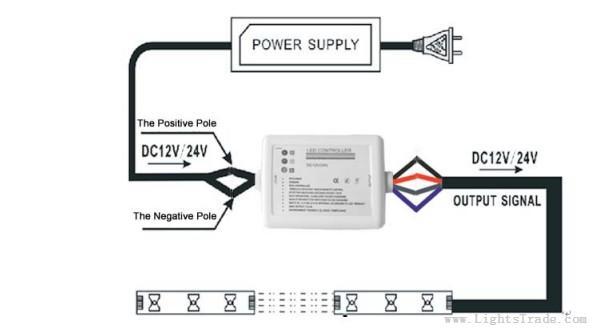

[Connector]
[Attentions]
1) Input voltage of remote control must be the same as RGB strips
2) Match the color of output wiring when connecting
3) When the color doesn’t match, for example, it displays blue when touch green,
or displays green when touching blue ,please check whether the wiring is correct ,in this
case ,exchange blue and green.
